HDC Series (Tube Plate)
Prev

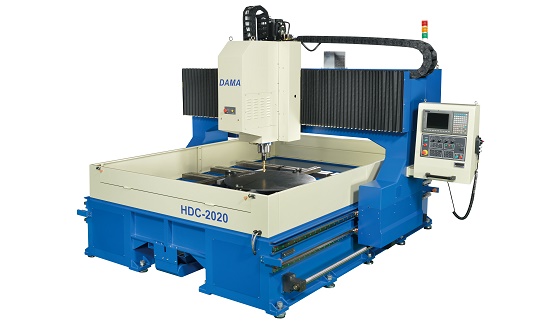

1. HDC-2020 is high efficiency high production drilling machine with high speed coolant thru spindle.
2. HDC-2020 is suitable for tube plate drilling, boring, grooving, milling and tapping.
3. CNC system: Dama-Syntec Special purpose CNC system, Windows CE base for plate drilling jobs with ease operation interface.
4. X, X’ Dual axis AC servo motor, double ball-screw, four linear guide.
Y axis AC servo motor, ball-screw, Linear guide.
Z Axis AC servo motor, ball-screw, linear guide.
5. Rigid BT 40 coolant thru spindle up to 2000 rpm, drilling diameter from 6~50mm and thickness up to 100mm.
6. Adopting with spindle air cooling system & air positive pressure system to protect the spindle.
7. Provides a macro for three point to decide a circle, easy looking for a center for round parts.
8. Provides M8~M24 rigid tapping and milling thread function for over M24 thread.
9. Provides tool life manage function to keep the drilling quality.
10. Provides the DXF and G, M code file transfer easy CNC part program produce.
|
Model |
HDC-2020 |
||
|
Max size of work-piece |
width*length (mm) |
2000*2000 |
|
|
Max thickness |
100 mm |
||
|
IPC CNC controller (Syntec 10B-STD-B-K-4425M) |
10.4” LCD color display Part program loading:
|
||
|
High Speed High precision spindle |
BT 40 spindle Rotary coupling, standard for cooling-thru tools. Adopting with spindle air cooling system & air positive pressure system to protect the spindle |
||
|
Drilling capability (Drill diameter) |
Ø6~ Ø50 |
||
|
Tapping capability |
M8~M24 |
||
|
Spindle servo motor 20HP |
Rated torque |
284 |
|
|
Rpm |
200~2000 |
||
|
ratio |
1/2 |
||
|
Longitudinal movement of gantry (X & XX axis) |
Rapid speed |
12 m/min |
|
|
Guide way |
Linear guide way |
||
|
Transmission |
Ball screw (∮ 48) (double side) |
||
|
Servo motor power (KW) |
1KW X 2 PCS |
||
|
Transverse movement of spindle (Y axis) |
Rapid speed |
12 m/min |
|
|
Guide way |
Linear guide way |
||
|
Transmission |
Ball screw (∮ 38) |
||
|
Servo motor power (KW) |
1 |
||
|
Feeding movement of vertical (Z axis) |
Rapid speed |
6 m/min |
|
|
Guide way |
Linear guide way |
||
|
Transmission |
Ball screw (∮ 40) |
||
|
Servo motor power (KW) |
2 |
||
|
Ratio |
1:2 |
||
|
Maximum drilling thrust (N) |
23989 |
||
|
Max storke (mm) |
450 |
||
|
Positioning precision |
±0.1mm |
||
|
Repeat precision |
±0.04mm |
||
|
Verticality Accuracy |
≦0.05/300 mm |
||
|
Tool length |
170 ~300 mm |
||
|
Work table |
T slot distance(mm) |
500 |
|
|
Manual clamps |
4 T-slots |
||
|
Coolant system |
High pressure coolant |
||
|
Quantity of chip - conveyor |
1 |
||
|
File transfer software for (DXF to G, M code) |
Standard |
||
|
Power supply |
3 ø,220V,40HP |
||
|
Air pressure |
4 kg/cm² |
||
|
Machine dimension(L x W x H) mm |
5027x3690x2860 |
||
|
|
|||
