Hyper X Gantry Type Series

Prev
Add to Inquiry Inquiry List
  1. Gantry design for heavy duty: Ensuring both precision and reliability.
  2. Two full sized saddles, running on longitudinal guide rails: Giving high precision and durability.
  3. High speed digital EtherCAT communicate interface between controller and digital AC servo drive system enhances overall machine system reliability, the positioning speed up to 18 M/min.
  4. Linear guide for transverse precision and durability.
  5. 300mm width transverse guide, stability and precision even with heavy torch suspension units.
  6. Transverse energy feed chains: Giving efficient transportation of hoses and cables.
  7. HYPER X set up with Edge Connect controller, Sensor THC plasma height sensor and XPR X-definition auto-gas plasma, provides high performance and achieve repeatable excellent cutting quality.
  8. Phoenix Software built-in ProNest CNC which can automatically generate cut program from build-in 68 pattern or external DXF input. Also can automatically setting the process parameters of mild-steel,stainless steel and aluminum to ensure the best cutting performance.
  9. User-friendly CutPro Wizard embedded.
  10. DXF and DWG file can be input directly and through built-in ProNest CNC to process array nesting for single part.
  11. 19" touch screen and Windows 10 embedded operation system.

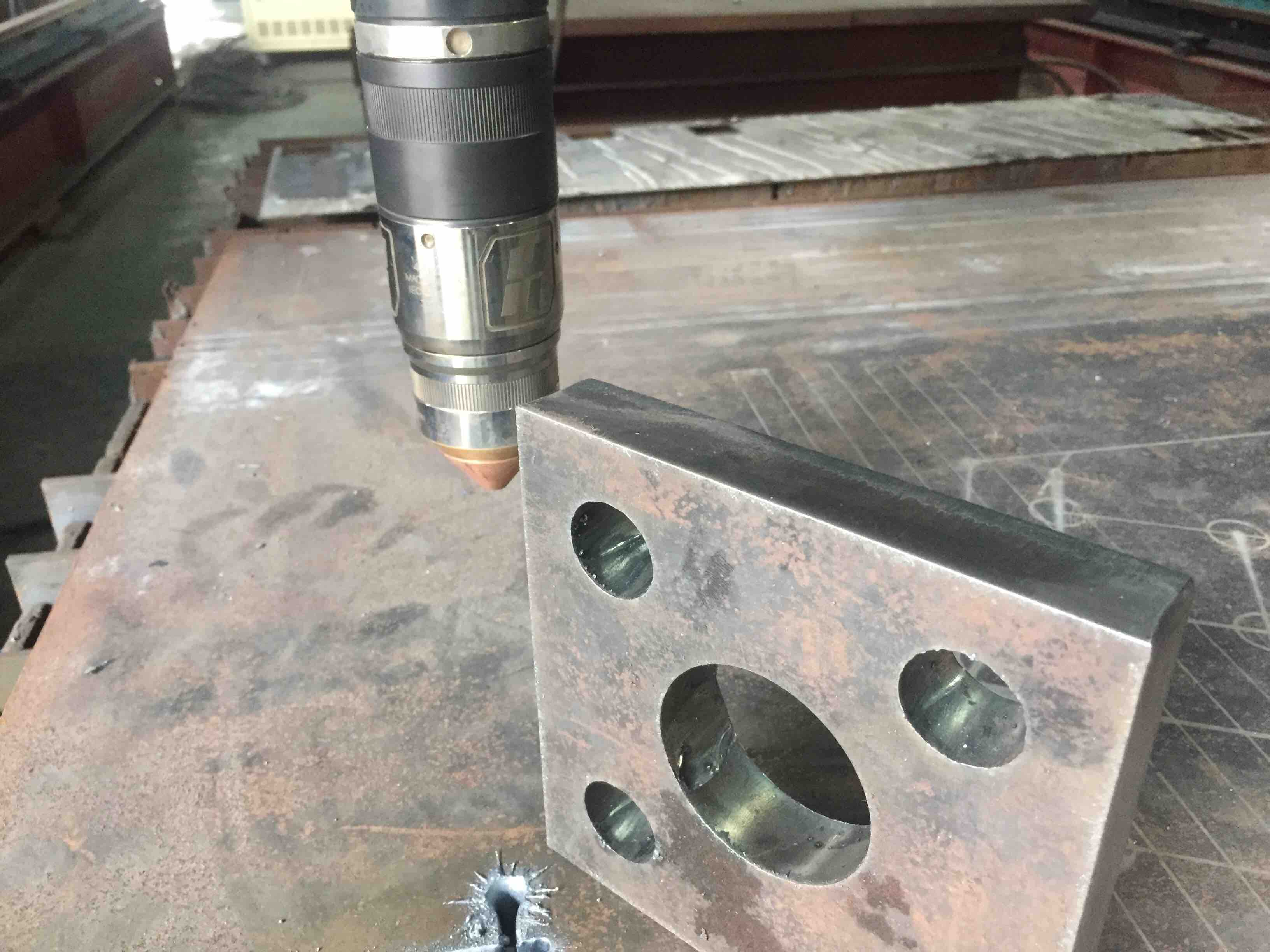

  12. True hole cutting technique : for the mild steel cutting, the hole diameter can be processed 1-2 times thickness of the plate (below 26mm)without post-processing.
  13. Option the VMI or OptiMix gas control console of XPR to achieve high quality cutting formild-steel,stainless steel and aluminum.
  14. XPR Plasma status and diagnostics can be monitored from CNC controller or WiFi remote monitor.

Model

Hyper X

2500

Hyper X

3100

Hyper X

4000

Hyper X

5000

Hyper X

6000

Effective cutting width (A)

2500

mm

3100

mm

4000

mm

5000

mm

6000

mm

Rail span (B)

3500

mm

4100

mm

5000

mm

6000

mm

7000

mm

Effective cutting length

6500 mm +(X)

Rails length

9000 mm +(X)

Cutting speed

1～6000 mm/min

Rapid speed

18000 mm/min

Power supply

3 phases, 220V, 50~60Hz, 5KVA or on request

CNC controller : Edge Connect

  • Phoenix software built-in cut charts for automatically setting process parameters
  • Built-in CutPro™Wizard easy use.
  • 19" touch screen and Windows 10 operation system.
  • RAM≥4GB、120GB SATA Hard Drive、USB ports * 4、EtherCAT 、WiFi.
  • Software utilities: Remote Help, CutPro Wizard and ProNest CNC simple shape nesting.

Plasma height sensor: Hypertherm Sensor THC

Plasma : Hypertherm XPR 300 , Hypertherm XPR170





Option

Plasma Bevel Cutting Module:

  • Dual tilt design for position accuracy and easy adjustment.
  • Up to 50 degree A and V bevel type.
  • ProNest 2019 TureBevel Technology.

Oxy-Fuel cutting kit:

  • One Oxy-Fuel torch with motorized torch lifter and station.
  • Regulator & pressure gauge and manifold.
  • Oxy-Fuel cutting logic sequence control & operation panel.

2.Add Motorized Oxy-Fuel torch

3.Oxy-Fuel cutting torch height sensor (capacitive)

4.Zinc Powder marking torch

5.Warter spray

6.Electrical ignition unit

7.Rail's extension unit : Per 3000mm/unit (X)

8.Software(ProNest 2019)
